- Can achieve high-precision contour grinding by 4-axis CNC control (simultaneous 3-axis control)
- Employs an automatic grinding wheel feed system for continuous high-precision grinding.
- The automatic grinding wheel feed system can be set in steps of 0.0001mm.
- Allows multi-stroke setup for the Z axis.
- Grinding of small-size holes can be achieved by the high-speed spindle.
- Positioning accuracy 0.002mm for the X and Y axis.
- Minimum input increment 0.0001mm for the X and Y axis and 0.0001deg for the C axis.
- Contour accuracy 0.003mm/
 100mm in dia.
- Covers ceramics, glass and other refractory materials.
- The sliding surface for each axis is made of quench-and-tempered double-V SKS3 which is excellent both in rigidity and durability.
- Super-precision grinding of molds, cams, contoured parts, gauges, and other precision items.
- Ideal for preparing molds for semiconductors.
| Positioning accuracy |
|
X・Y axis |
|
|
0.002mm
|
| Squareness |
|
X・Y axis |
|
|
0.002mm
|
|
|
Z axis |
|
|
0.002mm
|
| Parallelism |
|
|
|
|
0.002mm |
| Contour positioning |
|
|
|
|
0.003mm/ 100mm |
Item
|
Specifications
|
X axis stroke
|
450mm (horizontal)
|
Y axis stroke
|
250mm (transversal)
|
Z axis stroke
|
300mm (vertical)
|
U axis stroke
|
6mm (auto feed)
38mm (manual feed)
|
C axis stroke
|
360 deg
|
Table top surface-spindle head distance
|
100mm~400mm
|
Spindle center-column distance
|
243mm
|
Table work area size
|
620 x 300mm
|
Maximum table load capacity
|
100kg
|
T slot (width x lines x pitch)
|
12 x 3 x 80mm
|
| Rapid feed (G00) |
X・Y・Z axis |
|
C axis |
|
1,000mm/min
40rpm
|
Grinding feed (G01, G02, G03)
|
150mm/min (Max)
|
| Manual feed (JOG) |
X・Y・Z axis |
|
C axis |
|
450mm/min
30rpm
|
| Manual handle feed |
X・Y axis |
|
C axis |
|
U axis |
|
Z axis |
|
0.01, 0.001, 0.0001mm
0.01, 0.001, 0.0001deg
0.01, 0.001, 0.0001mm
0.1, 0.01, 0.001mm
|
Grinding diameter
|
0.5 to 50.0 (when the 10mm dia. grinding wheel is used)
|
C axis continuous rotation speed
|
280rpm (Max)
|

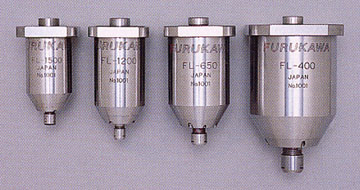

High-speed air spindle rotation speed
|
30,000~40,000rpm FL-400
60,000~70,000rpm FL-650
110,000~120,000rpm FL-1200
150,000~200,000rpm FL-1500
|
Power requirements
|
3 200V 30A 50/60Hz
|
Machine height
|
2,700mm
|
| Floor space required |
Machine |
|
1,650×1,850mm
|
|
|
3,050kg
|
|
|
|
|

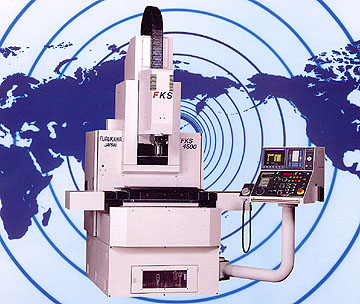

*"POPULAR TYPE" HIGH-PRECISION CNC GRINDING MACHINE
*CAPABLE OF CONTINUOUS MULTI-LEVEL GRINDING
*200,000rpm HIGH-SPEED SPINDLE
*SUPERIOR CONTROL FUNCTIONS ENABLEING A VARIETY OF HIGH-PRECISION GRINDING OPERATION
Click Here

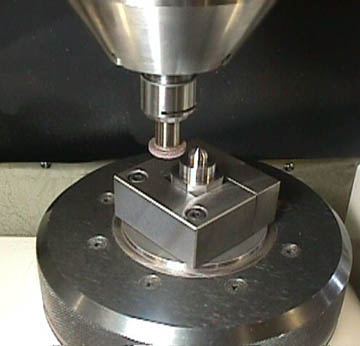

Contour Grinding
High-Speed Spindle Air Turbine
|
